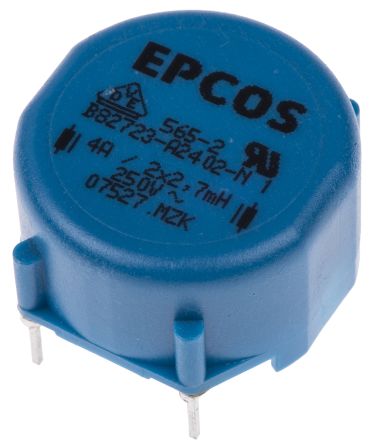

EPCOS 2.7 mH ±30% Ferrite Current Compensated Choke, 4A Idc, 60mΩ Rdc B82721A [B82723A2402N001]; 167-8414
by EPCOS
0₫
Mã kho: 1678414
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.7 mH |
| Maximum DC Current | 4A |
| Mounting Type | Radial |
| Maximum DC Resistance | 60mΩ |
| Tolerance | ±30% |
| Length | 28mm |
| Depth | 27mm |
| Height | 16.8mm |
| Dimensions | 28 x 27 x 16.8mm |
| Core Material | Ferrite |
| Lead Pitch | 25mm |
| Series | B82721A |
