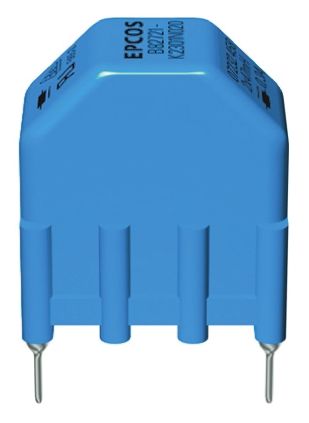

EPCOS 6.8 mH ±30% Ferrite Power Inductor, 1.2A Idc, 280mΩ Rdc B82721A [B82721K2122N020]; 167-0311
by EPCOS
0₫
Mã kho: 1670311
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 6.8 mH |
| Maximum DC Current | 1.2A |
| Mounting Type | Radial |
| Maximum DC Resistance | 280mΩ |
| Tolerance | ±30% |
| Length | 18.2mm |
| Depth | 13.2mm |
| Height | 20.3mm |
| Dimensions | 18.2 x 13.2 x 20.3mm |
| Core Material | Ferrite |
| Lead Pitch | 10 mm, 15 mm |
| Series | B82721A |
| Lead Diameter | 0.7mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
