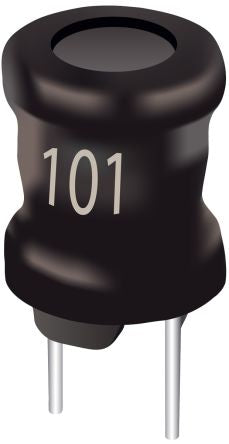

Bourns 3.3 μH ±10% Ferrite Leaded Inductor, Max SRF:79MHz, Q:20, 5.5 (Sat)A Idc, 25mΩ Rdc RLB0913 [RLB0913-3R3K]; 134-9998
by Bourns
0₫
Mã kho: 1349998
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 3.3 μH |
| Maximum DC Current | 5.5 (Sat)A |
| Mounting Type | Radial |
| Maximum DC Resistance | 25mΩ |
| Tolerance | ±10% |
| Diameter | 8.5mm |
| Height | 12.5mm |
| Dimensions | 8.5 (Dia.) x 12.5mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 79MHz |
| Lead Pitch | 5mm |
| Series | RLB0913 |
| Terminal Type | Radial Leaded |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 20 |
| Lead Diameter | 0.65mm |
| Minimum Operating Temperature | -55°C |
