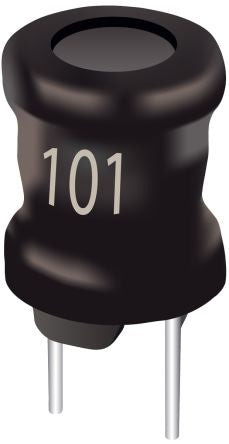

Bourns 33 mH ±10% Ferrite Leaded Inductor, Max SRF:100kHz, Q:30, 30 (Sat)mA Idc, 70Ω Rdc RLB0913 [RLB0913-333K]; 135-0048
by Bourns
0₫
Mã kho: 1350048
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 33 mH |
| Maximum DC Current | 30 (Sat)mA |
| Mounting Type | Radial |
| Maximum DC Resistance | 70Ω |
| Tolerance | ±10% |
| Diameter | 8.5mm |
| Height | 12.5mm |
| Dimensions | 8.5 (Dia.) x 12.5mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 100kHz |
| Lead Pitch | 5mm |
| Series | RLB0913 |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 30 |
| Lead Diameter | 0.65mm |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Radial Leaded |
