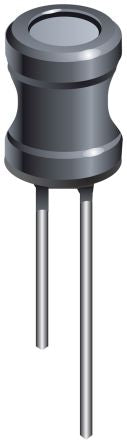

Bourns 220 μH ±10% Ferrite DR Radial Inductor, Max SRF:Minimum of 3MHz, Q:20, 240mA Idc, 900mΩ Rdc RLB [RLB0712-221KL]; 122-9230
by Bourns
0₫
Mã kho: 1229230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 220 μH |
| Maximum DC Current | 240mA |
| Mounting Type | Radial |
| Maximum DC Resistance | 900mΩ |
| Tolerance | ±10% |
| Diameter | 6.7mm |
| Height | 10mm |
| Dimensions | 6.7 (Dia.) x 10mm |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | Minimum of 3MHz |
| Lead Pitch | 3mm |
| Series | RLB |
| Lead Diameter | 0.65mm |
| Terminal Type | Radial Leaded |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 20 |
