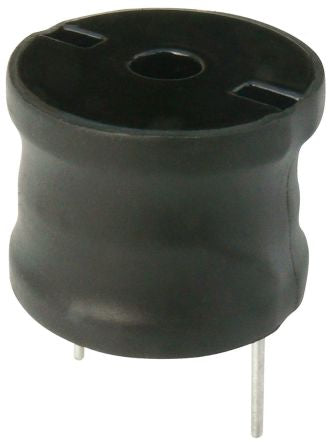

Bourns 100 μH ±10% Ferrite Bobbin Core Power Inductor, 10.5A Idc, 25mΩ Rdc 1140 [1140-101K-RC]; 172-8696
by Bourns
0₫
Mã kho: 1728696
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 100 μH |
| Maximum DC Current | 10.5A |
| Mounting Type | Radial |
| Maximum DC Resistance | 25mΩ |
| Tolerance | ±10% |
| Diameter | 1.5mm |
| Height | 1.03mm |
| Dimensions | 1.5 (Dia.) x 1.03mm |
| Core Material | Ferrite Bobbin Core |
| Lead Pitch | 1.15mm |
| Series | 1140 |
| Terminal Type | Radial Leaded |
| Minimum Operating Temperature | -55°C |
| Lead Diameter | 0.064mm |
| Maximum Operating Temperature | +105°C |
