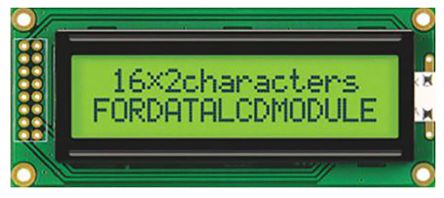

Fordata FC1602B01-FHYYBW-51LE FC Alphanumeric LCD Alphanumeric Display, Green, Yellow on Yellow-Green [FC1602B01-FHYYBW-51LE]; 125-3298
by Fordata
0₫
Mã kho: 1253298
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Alphanumeric |
| Character Matrix | 2 Rows by 16 Characters |
| Character Rows | 2 |
| Characters per Row | 16 |
| Character Height | 5.2mm |
| Character Width | 3mm |
| Viewing Area Width | 64.5mm |
| Viewing Area Dimensions | 64.5 x 16.4mm |
| Viewing Area Height | 16.4mm |
| External Depth | 10.2mm |
| Background Colour | Yellow-Green |
| Backlight Type | LED |
| Illumination Colour | Green, Yellow |
| External Height | 36mm |
| External Dimensions | 85 x 36 x 10.2mm |
| External Width | 85mm |
| Controller Type | SPLC780D |
| Display Mode | Transflective |
| Display Matrix Technology | STN |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Voltage Rating | 5.5V |
| Series | FC |
| Current Rating | 4mA |
| Operating Temperature Range | -20 → +70°C |
| Driver Mounting | COB |
