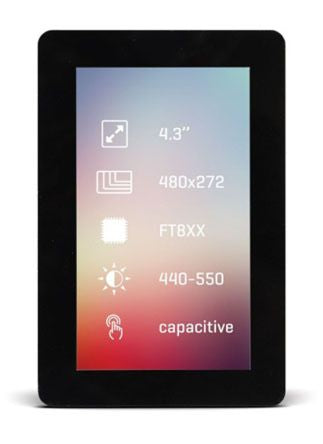

MikroElektronika MIKROE-2168 TFT LCD Colour Display / Touch Screen, 4.3in, 480 x 272pixels [MIKROE-2168]; 139-3639
0₫
Mã kho: 1393639
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diagonal Display Size | 4.3in |
Interface Type | I2C, SPI |
Resolution | 480 x 272pixels |
Touch Screen | Yes |
Viewing Area Dimensions | 95.04 x 53.86mm |
Supply Voltage | 3 → 3.6 V |
Touch Screen Type | Capacitive |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | Dc |
Dimensions | 120.38 x 79.2 x 8.63mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Depth | 8.63mm |
Number of Colours | 262144 |
Width | 120.38mm |
Height | 79.2mm |
Response Time | 30ms |
Viewing Area Width | 95.04mm |
Viewing Area Height | 53.86mm |
Contrast Ratio | 20.8340277777778 |
Operating Temperature Range | -20 → +70°C |
Current Rating | 87mA |
Brightness | 500cd/m² |
