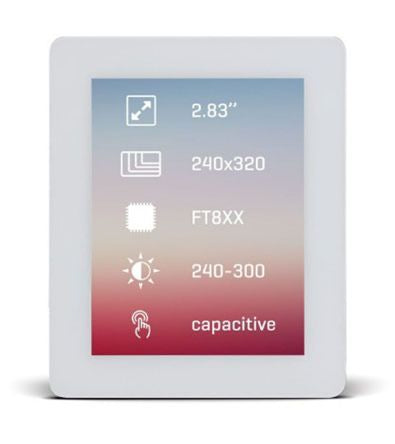

MikroElektronika MIKROE-2159 TFT LCD Colour Display / Touch Screen, 2.83in, 240 x 320pixels [MIKROE-2159]; 139-3631
0₫
Mã kho: 1393631
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diagonal Display Size | 2.83in |
Interface Type | I2C, SPI |
Resolution | 240 x 320pixels |
Touch Screen | Yes |
Viewing Area Dimensions | 43.2 x 57.6mm |
Supply Voltage | 2.5 → 3.3 V |
Touch Screen Type | Capacitive |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | Dc |
Dimensions | 67.6 x 82 x 8.2mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Contrast Ratio | 20.8340277777778 |
Operating Temperature Range | -20 → +70°C |
Viewing Area Height | 57.6mm |
Width | 67.6mm |
Current Rating | 22mA |
Height | 82mm |
Number of Colours | 262144 |
Depth | 8.2mm |
Viewing Area Width | 43.2mm |
Brightness | 255cd/m² |
Response Time | 30ms |
