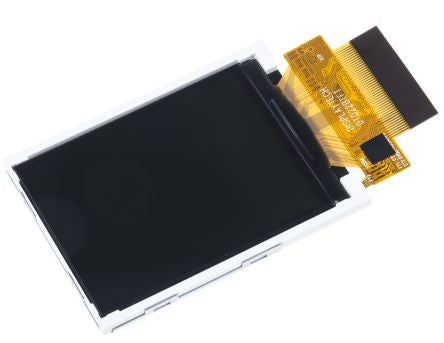

Displaytech DT022BTFT TFT LCD Colour Display, 2.2in QVGA, 240 x 320pixels [DT022BTFT]; 171-1712
by Displaytech
0₫
Mã kho: 1711712
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diagonal Display Size | 2.2in |
Interface Type | Parallel, RGB |
Resolution | 240 x 320pixels |
Touch Screen | No |
Viewing Area Dimensions | 45.12 x 33.84mm |
Supply Voltage | -0.3 +4.6 V dc |
Touch Screen Type | None |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | Dc |
Dimensions | 56.16 x 41.7 x 3.2mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Graphics Array Type | QVGA |
Width | 41.7mm |
Number of Colours | 262144 |
Depth | 3.2mm |
Response Time | 20ms |
Operating Temperature Range | -20 +70°C |
Viewing Area Width | 33.84mm |
Brightness | 200cd/m² |
Viewing Area Height | 45.12mm |
Aspect Ratio | 0.16875 |
Contrast Ratio | 14.5840277777778 |
Height | 56.16mm |
