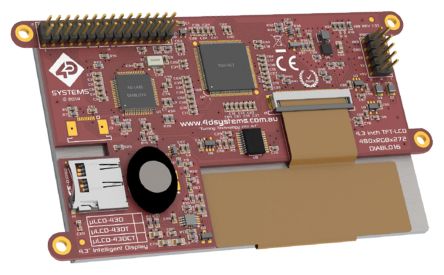

4D Systems uLCD-43DCT TFT LCD Colour Display / Touch Screen, 4.3in, 480 x 272pixels [uLCD-43DCT]; 902-8669
by 4D Systems
0₫
Mã kho: 9028669
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diagonal Display Size | 4.3in |
Interface Type | I2C, TTL |
Resolution | 480 X 272pixels |
Touch Screen | Yes |
Viewing Area Dimensions | 95.34 x 53.85mm |
Touch Screen Type | Resistive |
Supply Voltage | 5.5 V |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | Dc |
Dimensions | 67 x 119.5 x 15.2mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Standards Met | CE, RoHS Compliant |
Number of Colours | 65536 |
Current Rating | 350mA |
Viewing Area Height | 53.85mm |
Contrast Ratio | 14.5840277777778 |
Operating Temperature Range | -10 → +60°C |
Height | 67mm |
Brightness | 480cd/m² |
Viewing Area Width | 95.04mm |
Depth | 15.2mm |
Width | 119.5mm |
