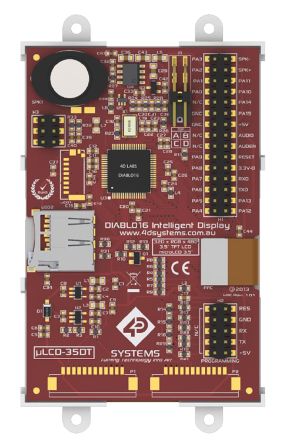

4D Systems uLCD-35DT TFT LCD Colour Display / Touch Screen, 3.5in VGA, 480 x 320pixels [uLCD-35DT]; 902-8656
by 4D Systems
0₫
Mã kho: 9028656
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 3.5in |
| Interface Type | I2C, TTL |
| Resolution | 480 x 320pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 49 x 73.4mm |
| Supply Voltage | 5.5 V |
| Touch Screen Type | Resistive |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | Dc |
| Dimensions | 97.6 x 56.9 x 15.8mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Graphics Array Type | VGA |
| Contrast Ratio | 20.8340277777778 |
| Depth | 15.8mm |
| Number of Colours | 65536 |
| Operating Temperature Range | -10 → +60°C |
| Standards Met | CE, RoHS Compliant |
| Height | 97.6mm |
| Current Rating | 250mA |
| Width | 56.9mm |
| Viewing Area Width | 49mm |
| Brightness | 220cd/m² |
| Viewing Area Height | 73.4mm |
