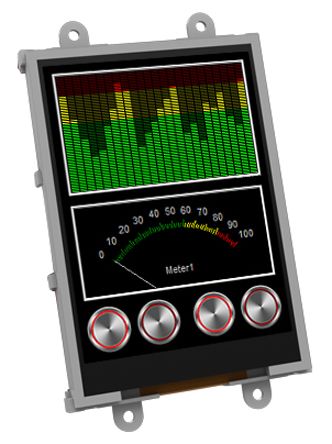

4D Systems uLCD-32PTU TFT LCD Colour Display / Touch Screen, 3.2in VGA, 240 x 320pixels [uLCD-32PTU]; 902-8653
by 4D Systems
0₫
Mã kho: 9028653
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diagonal Display Size | 3.2in |
Interface Type | I2C, TTL |
Resolution | 240 x 320pixels |
Touch Screen | Yes |
Viewing Area Dimensions | 48.6 x 64.8mm |
Supply Voltage | 5.5 V |
Touch Screen Type | Resistive |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | Dc |
Dimensions | 76.69 x 56.32 x 15.9mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Graphics Array Type | VGA |
Operating Temperature Range | -10 → +60°C |
Number of Colours | 65536 |
Depth | 15.9mm |
Contrast Ratio | 14.5840277777778 |
Brightness | 200cd/m² |
Height | 79.65mm |
Viewing Area Width | 48.6mm |
Response Time | 25ms |
Viewing Area Height | 64.8mm |
Standards Met | CE, RoHS Compliant |
Width | 56.32mm |
Current Rating | 215mA |
