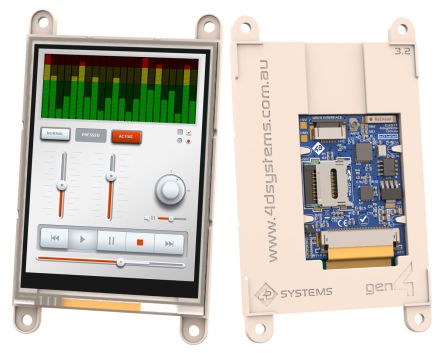

4D Systems gen4-IoD-32T TFT LCD Colour Display / Touch Screen, 3.2in, 240 x 320pixels [gen4-IoD-32T]; 136-9923
by 4D Systems
0₫
Mã kho: 1369923
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diagonal Display Size | 3.2in |
Interface Type | UART |
Resolution | 240 x 320pixels |
Touch Screen | Yes |
Viewing Area Dimensions | 48.6 x 64.8mm |
Supply Voltage | 5 V |
Touch Screen Type | Resistive |
Backlight Type | LED |
Display Mode | Transmissive |
AC or DC Input Voltage | Dc |
Dimensions | 95.7 x 57.1 x 7.5mm |
Display Matrix Technology | TFT |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Width | 57.1mm |
Series | gen4 |
Contrast Ratio | 10.4173611111111 |
Height | 7.5mm |
Current Rating | 220mA |
Operating Temperature Range | -20 → +70°C |
Depth | 7.5mm |
Standards Met | CE |
Number of Colours | 65536 |
Brightness | 160cd/m² |
Voltage Rating | 5V dc |
Viewing Area Width | 48.6mm |
Viewing Area Height | 64.8mm |
