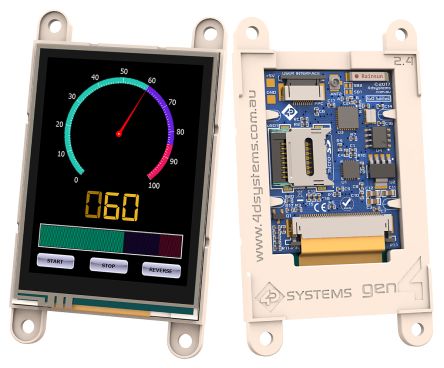

4D Systems gen4-IoD-24T TFT LCD Colour Display / Touch Screen, 2.4in, 240 x 320pixels [gen4-IoD-24T]; 136-9921
by 4D Systems
0₫
Mã kho: 1369921
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 2.4in |
| Interface Type | UART |
| Resolution | 240 x 320pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 36.72 x 48.96mm |
| Supply Voltage | 5 V |
| Touch Screen Type | Resistive |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | Dc |
| Dimensions | 78.4 x 44.8 x 7.2mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Width | 44.8mm |
| Number of Colours | 65536 |
| Standards Met | CE |
| Depth | 7.2mm |
| Operating Temperature Range | -20 → +70°C |
| Viewing Area Width | 36.72mm |
| Voltage Rating | 5V dc |
| Height | 7.2mm |
| Viewing Area Height | 48.96mm |
| Contrast Ratio | 10.4173611111111 |
| Series | gen4 |
| Brightness | 182cd/m² |
| Current Rating | 200mA |
