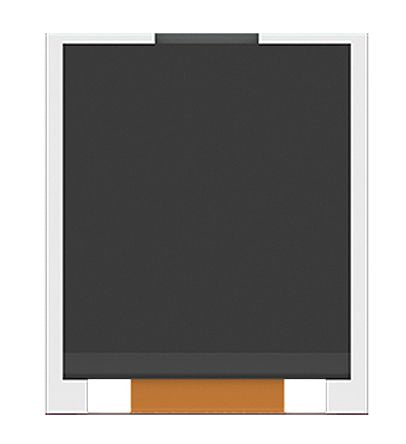

4D Systems 4DLCD-144 TFT LCD Colour Display, 1.4in, 128 x 128pixels [4DLCD-144]; 902-8559
by 4D Systems
0₫
Mã kho: 9028559
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 1.4in |
| Interface Type | Parallel |
| Resolution | 128 x 128pixels |
| Touch Screen | No |
| Viewing Area Dimensions | 25.5 x 26.5mm |
| Supply Voltage | 3.3 V |
| Touch Screen Type | None |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | Dc |
| Dimensions | 36.51 x 30.9 x 1.6mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Voltage Rating | 3.1V |
| Number of Colours | 65536 |
| Operating Temperature Range | -20 → +70°C |
| Depth | 1.6mm |
| Height | 36.51mm |
| Brightness | 250cd/m² |
| Contrast Ratio | 18.7506944444444 |
| Current Rating | 10mA |
| Width | 30.9mm |
| Viewing Area Width | 25.5mm |
| Response Time | 240ms |
| Viewing Area Height | 26.5mm |
| Standards Met | RoHS Compliant |
