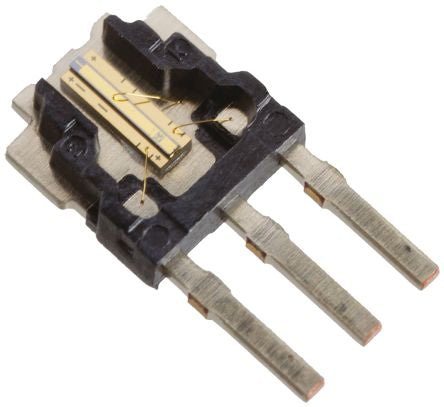

Panasonic LNCT22PK01WW Laser Diode 665 nm, 791 nm 280 mW, 380 mW, 3-Pin FLD package [LNCT22PK01WW]; 103-5070
by Panasonic
0₫
Mã kho: 1035070
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Wavelength | 665 nm, 791 nm |
| Optical Output Power | 280 mW, 380 mW |
| Number of Pins | 3 |
| Mounting Type | Through Hole |
| Perpendicular Beam Divergence FWHM | 19 / 19.5° |
| Parallel Beam Divergence FWHM | 11.5 °, 13 ° |
| Maximum Operating Current | 230 mA, 380 mA |
| Dimensions | 3.55 x 1.2 x 3.75mm |
| Length | 3.55mm |
| Width | 1.2mm |
| Height | 3.75mm |
| Supply Voltage Range | Maximum of 3 V, 3.2 V |
| Package Type | FLD |
| Maximum Supply Voltage | 3 V, 3.2 V |
