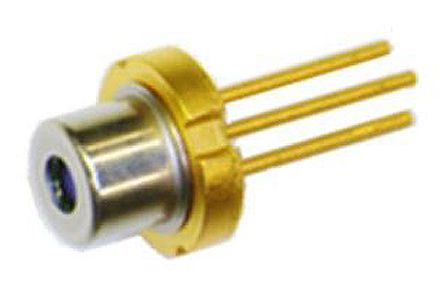

Panasonic LNCQ28MS01WW Red Laser Diode 661Nm 100mW, 3-Pin TO-56 package [LNCQ28MS01WW]; 179-6977
by Panasonic
0₫
Mã kho: 1796977
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Wavelength | 661nm |
| Optical Output Power | 100mW |
| Number of Pins | 3 |
| Mounting Type | Through Hole |
| Laser Colour | Red |
| Perpendicular Beam Divergence FWHM | 19.5° |
| Parallel Beam Divergence FWHM | 13° |
| Maximum Operating Current | 165mA |
| Dimensions | 5.6 Dia. x 3.95mm |
| Width | 5.6 Dia.mm |
| Height | 3.95mm |
| Diameter | 5.6mm |
| Minimum Supply Voltage | 2V |
| Supply Voltage Range | 2 → 3 V |
| Package Type | TO-56 |
| Reverse Voltage | 5V |
| Series | LNC |
| Maximum Supply Voltage | 3V |
