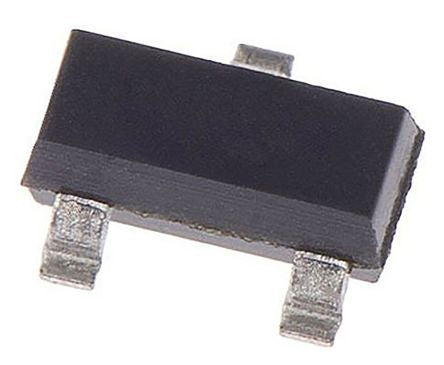

ON Semiconductor 2SK932-22-TB-E N-Channel JFET, 15 V, Idss 7.3 → 12mA, 3-Pin CP [2SK932-22-TB-E]; 163-2023
0₫
Mã kho: 1632023
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Idss Drain-Source Cut-off Current | 7.3 → 12mA |
Maximum Drain Source Voltage | 15 V |
Maximum Drain Gate Voltage | -15V |
Transistor Configuration | Single |
Configuration | Single |
Mounting Type | Surface Mount |
Package Type | CP |
Pin Count | 3 |
Drain Gate On-Capacitance | 10pF |
Source Gate On-Capacitance | 3pF |
Dimensions | 2.9 x 1.5 x 1.1mm |
Width | 1.5mm |
Height | 1.1mm |
Maximum Operating Temperature | +150 °C |
Length | 2.9mm |
