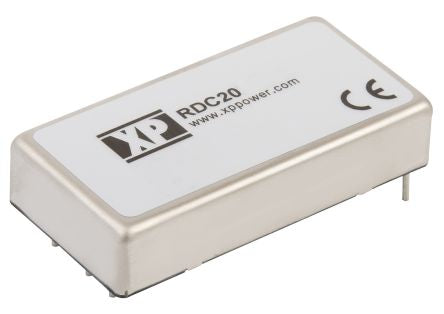

XP Power RDC 20W Isolated DC-DC Converter Through Hole, Voltage in 55 → 176 V dc, Voltage out 15V dc Railway [RDC20110S15]; 122-4547
by XP Power
0₫
Mã kho: 1224547
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 55 → 176 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 1.5kV ac |
| Power Rating | 20W |
| Output Current | 1.33A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | No |
| Railway Approved | Yes |
| Package | 2 x 1 in |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Width | 25.4mm |
| Depth | 10.16mm |
| Length | 50.8mm |
| Series | RDC |
| Standards Met | CE Certified, EN50121-3-2, EN55011, EN61000-4-2 Level 3, EN61000-4-3 20 V/m, EN61000-4-4 Level 3, EN61000-4-5 Level 2, EN61000-4-6 10 V/rms, EN61000-4-8 10 A/m, MIL-HDBK-217F |
