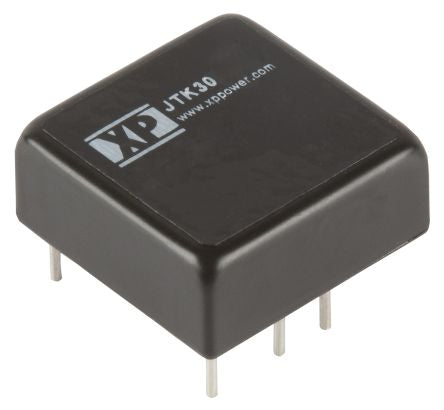

XP Power JTK30 30W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out 5V dc [JTK3048S05]; 167-2893
by XP Power
0₫
Mã kho: 1672893
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Output Voltage Adjustment Range | ±10 (Minimum)% |
| Input Voltage Range | 18 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 1.6kV dc |
| Power Rating | 30W |
| Output Current | 6A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | 1 x 1 in |
| Load Regulation | Maximum of 0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Width | 25.4mm |
| Length | 25.4mm |
| Standards Met | EN55032, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Series | JTK30 |
| Depth | 10.4mm |
