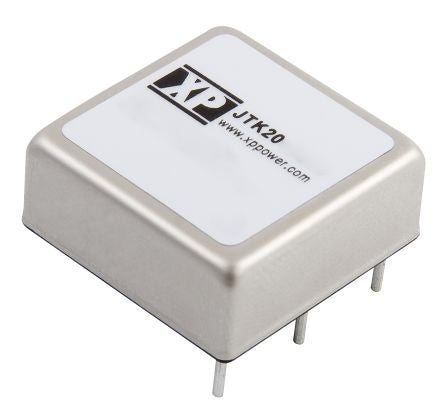

XP Power JTK 20W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out 12V dc [JTK2024S12]; 122-7555
by XP Power
0₫
Mã kho: 1227555
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.6kV dc |
| Power Rating | 20W |
| Output Current | 1.67A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | 1 x 1 in |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +100°C |
| Length | 25.4mm |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
| Depth | 9.9mm |
| Width | 25.4mm |
| Series | JTK |
