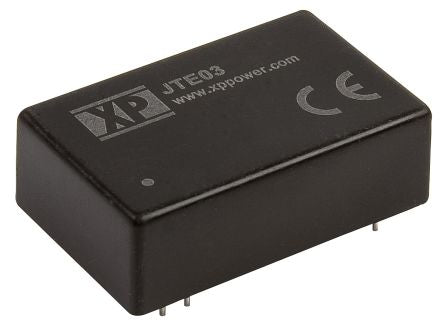

XP Power JTE03 3W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out 12V dc [JTE0324S12]; 161-9205
by XP Power
0₫
Mã kho: 1619205
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 3W |
| Output Current | 250mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.81 |
| Package | DIP 24 |
| Load Regulation | ±1.2% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Width | 20.32mm |
| Length | 31.75mm |
| Series | JTE03 |
| Depth | 10.16mm |
