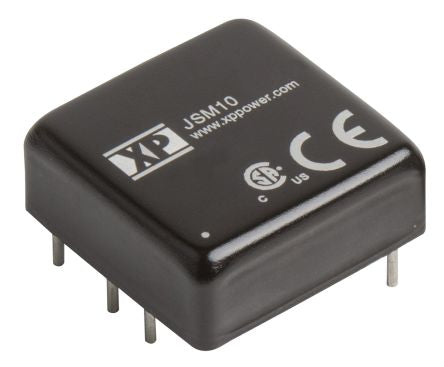

XP Power JSM10 10W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 5V dc [JSM1012S5V1]; 123-1183
by XP Power
0₫
Mã kho: 1231183
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 9 → 18 V dc |
Input Voltage Nominal | 12 V dc |
Isolation Voltage | 1.5kV dc |
Power Rating | 10W |
Output Current | 2A |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Package | 1 x 1 in |
Load Regulation | ±0.5% |
Minimum Temperature | -40°C |
Maximum Temperature | +100°C |
Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1 |
Depth | 10.16mm |
Series | JSM10 |
Width | 25.4mm |
Length | 25.4mm |
