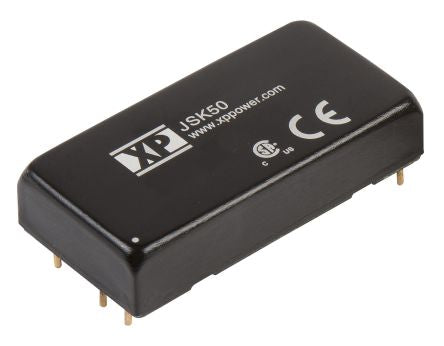

XP Power JSK50 50W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 12V dc [JSK5024S12]; 167-1998
by XP Power
0₫
Mã kho: 1671998
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 18 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 50W |
| Output Current | 4.17A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | 2 x 1 in |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +105°C |
| Depth | 11mm |
| Standards Met | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE, MIL-HDBK-217F, UL/cUL 60950-1 |
| Series | JSK50 |
| Length | 50.8mm |
| Width | 25.4mm |
