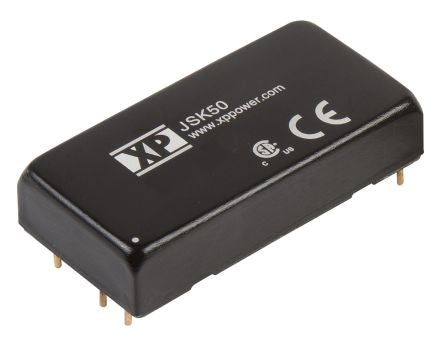

XP Power JSK50 50W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 12V dc [JSK5012S12]; 122-6251
by XP Power
0₫
Mã kho: 1226251
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 9 → 18 V dc |
Input Voltage Nominal | 12 V dc |
Isolation Voltage | 1.5kV dc |
Power Rating | 50W |
Output Current | 4.17A |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Package | 2 x 1 in |
Minimum Temperature | -40°C |
Load Regulation | ±0.5% |
Maximum Temperature | +105°C |
Standards Met | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE, MIL-HDBK-217F, UL/cUL 60950-1 |
Length | 50.8mm |
Depth | 11mm |
Width | 25.4mm |
Series | JSK50 |
