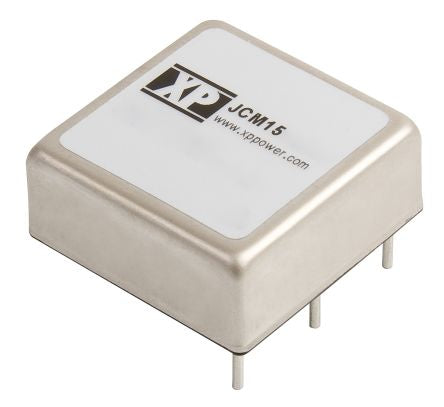

XP Power JCM 15W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±5V dc [JCM1512D05]; 161-9021
by XP Power
0₫
Mã kho: 1619021
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±5V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.6kV dc |
| Power Rating | 15W |
| Output Current | ±1.5A |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Package | 1 x 1 in |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +105°C |
| Length | 25.4mm |
| Width | 25.4mm |
| Series | JCM |
| Depth | 9.9mm |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
