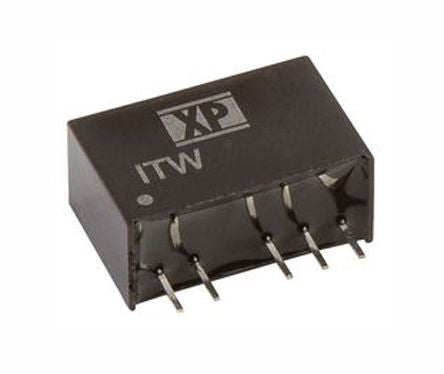

XP Power ITW 1W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±12V dc [ITW1212S]; 167-2168
by XP Power
0₫
Mã kho: 1672168
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 1W |
| Output Current | ±42mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Package | SIP 6 |
| Load Regulation | ±1 (5 → 100% Load) %, ±2 (0 → 100% Load) % |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Depth | 11mm |
| Series | ITW |
| Width | 7.62mm |
| Length | 17mm |
