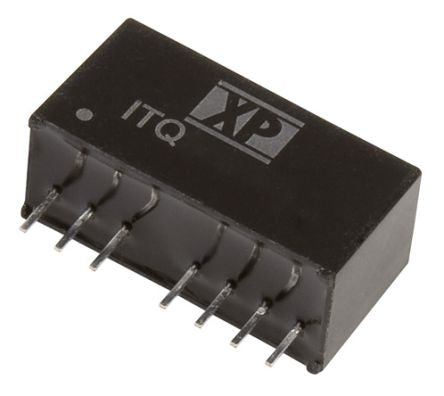

XP Power ITQ 6W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out 12V dc [ITQ4812SA-H]; 167-2201
by XP Power
0₫
Mã kho: 1672201
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 18 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 6W |
| Output Current | 500mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | SIP 8 |
| Load Regulation | ±0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Series | ITQ |
| Depth | 11.1mm |
| Length | 21.85mm |
| Width | 9.2mm |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
