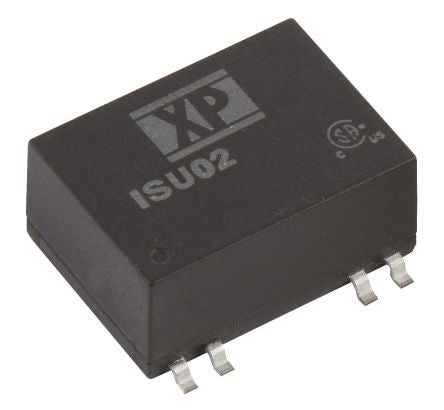

XP Power ISU02 2W Isolated DC-DC Converter Surface Mount, Voltage in 9 → 36 V dc, Voltage out ±12V dc [ISU0224D12]; 135-8100
by XP Power
0₫
Mã kho: 1358100
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 2W |
| Output Current | ±83mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Efficiency | 0.8 |
| Package | SMD |
| Minimum Temperature | -40°C |
| Load Regulation | ±1.0% |
| Maximum Temperature | +95°C |
| Length | 19mm |
| Series | ISU02 |
| Standards Met | ITE Safety Approvals |
| Width | 17mm |
| Depth | 8.7mm |
