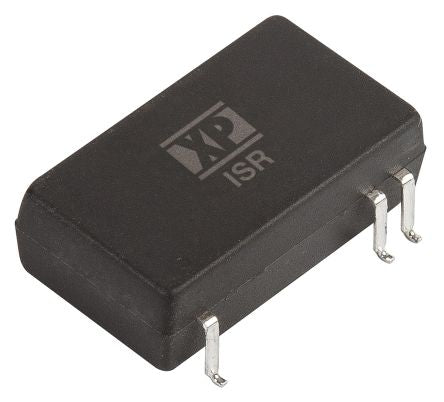

XP Power ISR 3W Isolated DC-DC Converter Surface Mount, Voltage in 36 → 75 V dc, Voltage out 5V dc [ISR4805A]; 167-2231
by XP Power
0₫
Mã kho: 1672231
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 36 → 75 V dc |
Input Voltage Nominal | 48 V dc |
Isolation Voltage | 1.5kV dc |
Power Rating | 3W |
Output Current | 600mA |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Efficiency | 0.77 |
Package | SMD |
Minimum Temperature | -40°C |
Load Regulation | ±0.75% |
Maximum Temperature | +95°C |
Width | 13.7mm |
Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
Depth | 7.5mm |
Length | 23.86mm |
Series | ISR |
