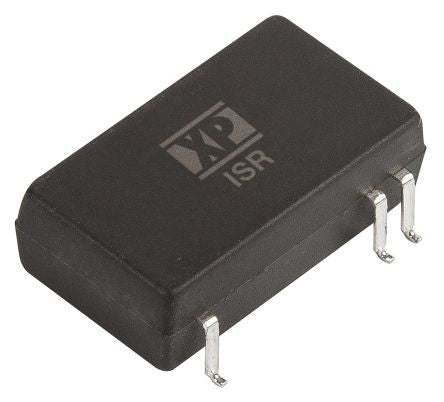

XP Power ISR 3W Isolated DC-DC Converter Surface Mount, Voltage in 18 → 36 V dc, Voltage out 12V dc [ISR2412A]; 122-5960
by XP Power
0₫
Mã kho: 1225960
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 18 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 3W |
| Output Current | 250mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.81 |
| Package | SMD |
| Load Regulation | ±0.75% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +95°C |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Depth | 7.5mm |
| Width | 13.7mm |
| Length | 23.86mm |
| Series | ISR |
