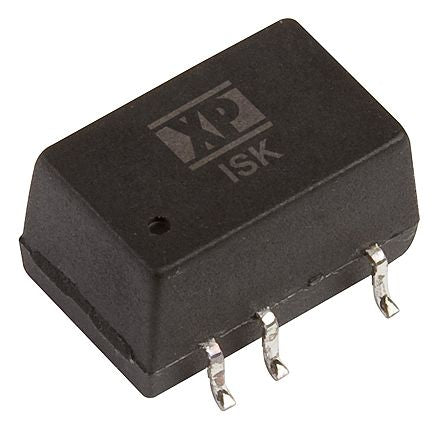

XP Power ISK 0.25W Isolated DC-DC Converter Surface Mount, Voltage in 4.5 → 5.5 V dc, Voltage out 3.3V dc [ISK0503A]; 167-2286
by XP Power
0₫
Mã kho: 1672286
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 0.25W |
| Output Current | 76mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.74 |
| Package | SMD |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Depth | 7mm |
| Width | 8.3mm |
| Length | 12.7mm |
| Series | ISK |
