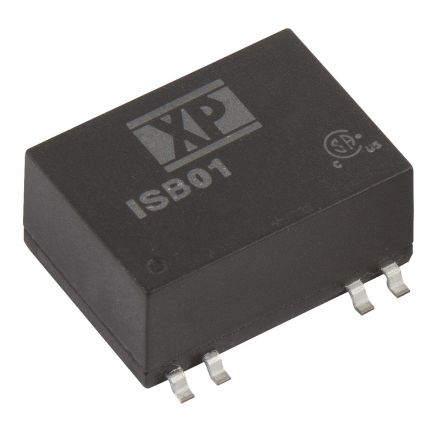

XP Power ISB 1W Isolated DC-DC Converter Surface Mount, Voltage in 36 → 75 V dc, Voltage out 5V dc [ISB0148S05]; 161-9011
by XP Power
0₫
Mã kho: 1619011
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 36 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 1W |
| Output Current | 200mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.79 |
| Package | SMD |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +95°C |
| Standards Met | CB, EN 55022, IEC 60950-1, IPC/JEDEC J-STD-020D.1, ITE, MIL-HDBK-217F, UL 94 V-0, UL/cUL 60950-1 |
| Series | ISB |
| Length | 18.9mm |
| Width | 13.7mm |
| Depth | 8.45mm |
