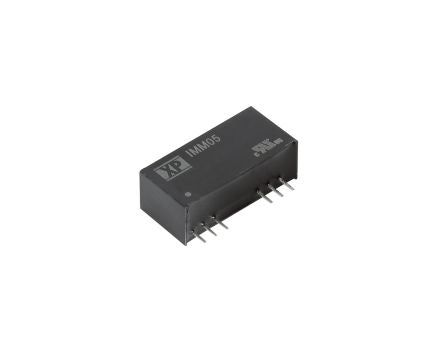

XP Power IMM05 5W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 12V dc Medical [IMM0512S12]; 183-3928
by XP Power
0₫
Mã kho: 1833928
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 5W |
| Output Current | 416mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | Yes |
| Efficiency | 0.82 |
| Package | SIP 9 |
| Minimum Temperature | -20°C |
| Load Regulation | ±2% |
| Maximum Temperature | +100°C |
| Standards Met | CB IEC/EN60601-1, CSA C22.2 No. 60601-1, EN55011, EN60601-1-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, TUV EN60601-1, UL ANSI/AMMI ES60601-1 |
| Series | IMM05 |
| Depth | 12.5mm |
| Length | 26mm |
| Width | 9.3mm |
