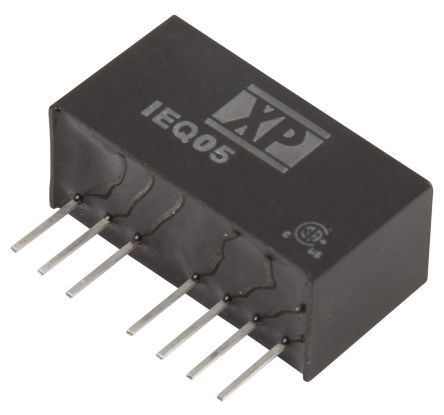

XP Power IEQ 5W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 18 V dc, Voltage out 12V dc [IEQ0512S12]; 122-7228
by XP Power
0₫
Mã kho: 1227228
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 4.5 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 5W |
| Output Current | 417mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.83 |
| Package | SIP |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +90°C |
| Width | 9.3mm |
| Length | 21.8mm |
| Depth | 11.2mm |
| Standards Met | CB, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, MIL-HDBK-217F, UL, UL 94 V-0, UL/cUL 60950-1 |
| Series | IEQ |
