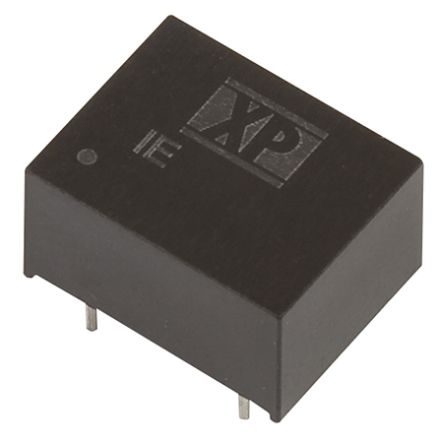

XP Power IE 1W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out 9V dc [IE2409D]; 161-9258
by XP Power
0₫
Mã kho: 1619258
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 9V dc |
Input Voltage Range | 21.6 → 26.4 V dc |
Input Voltage Nominal | 24 V dc |
Isolation Voltage | 1kV dc |
Power Rating | 1W |
Output Current | 111mA |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Efficiency | 0.77 |
Package | DIP |
Load Regulation | Maximum of 10% |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Width | 10.14mm |
Depth | 6.86mm |
Series | IE |
Length | 12.7mm |
