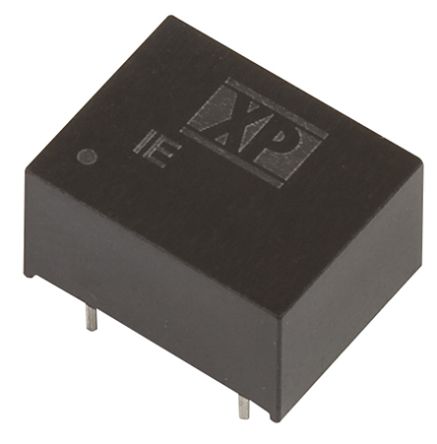

XP Power IE 1W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out 5V dc [IE2405D]; 167-2775
by XP Power
0₫
Mã kho: 1672775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1kV dc |
| Power Rating | 1W |
| Output Current | 200mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.75 |
| Package | DIP |
| Minimum Temperature | -40°C |
| Load Regulation | Maximum of 10% |
| Maximum Temperature | +85°C |
| Series | IE |
| Width | 10.14mm |
| Depth | 6.86mm |
| Length | 12.7mm |
