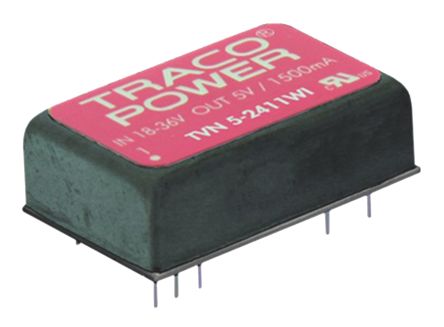

TRACOPOWER TVN 5WI 5W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±12V dc [TVN 5-2422WI]; 828-9052
by TRACOPOWER
0₫
Mã kho: 8289052
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 5W |
| Output Current | ±250mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.83 |
| Package | DIP 24 |
| Load Regulation | 1 (Balanced) %, 5 (Unbalanced) % |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Depth | 10.2mm |
| Series | TVN 5WI |
| Length | 31.8mm |
