![TRACOPOWER TMR 3-1222HI 7702144](http://nguyenxuong.com/cdn/shop/products/R7702144-01_74e3c4a0-da45-44f7-987b-af4a719d6044_444x327.jpg?v=1594401757)

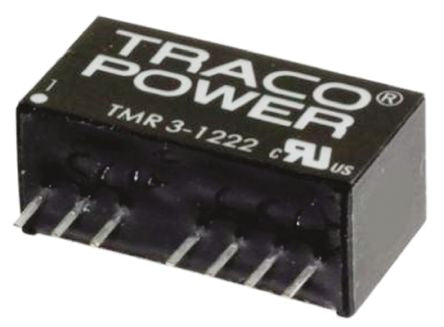

TRACOPOWER TMR 3HI 3W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±12V dc [TMR 3-1222HI]; 770-2144
by TRACOPOWER
0₫
Mã kho: 7702144
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | ±12V dc |
Input Voltage Range | 9 → 18 V dc |
Input Voltage Nominal | 12 V dc |
Isolation Voltage | 3kV dc |
Power Rating | 3W |
Output Current | ±125mA |
Mounting Type | Through Hole |
Number of Outputs | 2 |
Efficiency | 0.83 |
Package | SIP 8 |
Load Regulation | 0.01 |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Length | 21.8mm |
Depth | 11.1mm |
Series | TMR 3HI |
