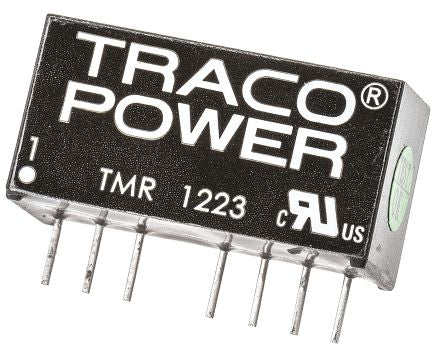

TRACOPOWER TMR 2 2W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±15V dc [TMR 1223]; 161-6540
by TRACOPOWER
0₫
Mã kho: 1616540
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.6kV dc |
| Power Rating | 2W |
| Output Current | ±65mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.84 |
| Package | SIP 8 |
| Load Regulation | ±1% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Depth | 11.1mm |
| Length | 21.8mm |
| Width | 9.2mm |
| Series | TMR 2 |
