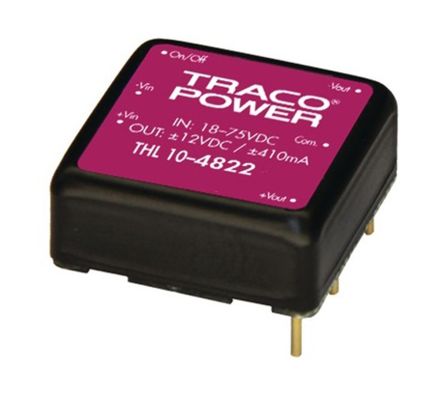

TRACOPOWER THL 10 10W Isolated DC-DC Converter Through Hole, Voltage in 36 → 75 V dc, Voltage out ±12V dc [THL 10-4822]; 166-6366
by TRACOPOWER
0₫
Mã kho: 1666366
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 36 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 10W |
| Output Current | ±416mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.87 |
| Package | 1 x 1 in |
| Minimum Temperature | -40°C |
| Load Regulation | 0.01 |
| Maximum Temperature | +80°C |
| Width | 25.4mm |
| Depth | 10.2mm |
| Standards Met | CB Scheme, CSA US, CULus, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1 |
| Series | THL 10 |
| Length | 25.4mm |
