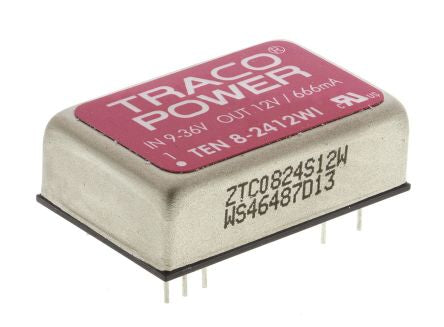

TRACOPOWER TEN 8WI 8W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out 12V dc Railway [TEN 8-2412WI]; 166-5479
by TRACOPOWER
0₫
Mã kho: 1665479
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 8W |
| Output Current | 666mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.86 |
| Medical Approved | No |
| Railway Approved | Yes |
| Package | DIP 24 |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +85°C |
| Width | 20.3mm |
| Length | 32mm |
| Series | TEN 8WI |
| Depth | 10.2mm |
