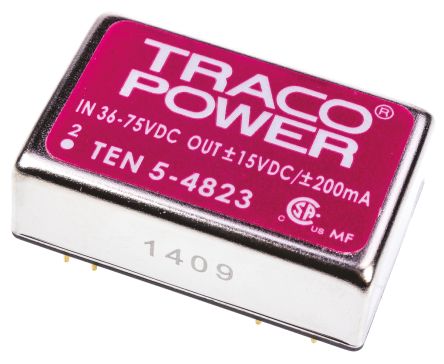

TRACOPOWER TEN 5 6W Isolated DC-DC Converter Through Hole, Voltage in 36 → 72 V dc, Voltage out ±15V dc [TEN 5-4823]; 161-9751
by TRACOPOWER
0₫
Mã kho: 1619751
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 36 → 72 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 6W |
| Output Current | ±200mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.86 |
| Package | DIP 24 |
| Load Regulation | ±5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Depth | 10mm |
| Length | 32mm |
| Series | TEN 5 |
| Width | 20mm |
