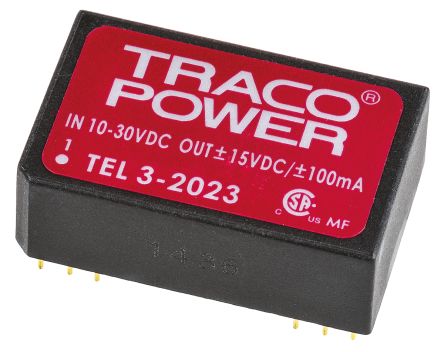

TRACOPOWER TEL 3 3W Isolated DC-DC Converter Through Hole, Voltage in 10 → 30 V dc, Voltage out ±15V dc [TEL 3-2023]; 161-6447
by TRACOPOWER
0₫
Mã kho: 1616447
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 10 → 30 V dc |
| Input Voltage Nominal | 20 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 3W |
| Output Current | ±100mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.8 |
| Package | DIP 24 |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +85°C |
| Length | 32mm |
| Series | TEL 3 |
| Width | 20mm |
| Depth | 10.2mm |
