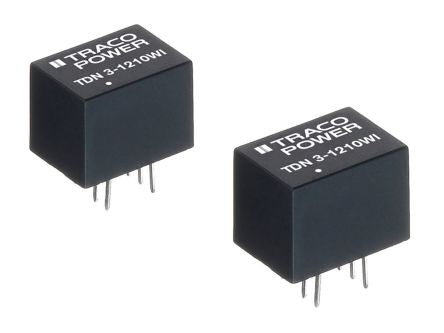

TRACOPOWER TDN 3WI 3W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out 12V dc [TDN 3-4812WI]; 166-6102
by TRACOPOWER
0₫
Mã kho: 1666102
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Output Voltage Adjustment Range | ±1% |
| Input Voltage Range | 18 → 75 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 3W |
| Output Current | 250mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.83 |
| Package | DIP |
| Load Regulation | 0.01 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +70°C |
| Width | 9.1mm |
| Depth | 10.2mm |
| Series | TDN 3WI |
| Length | 13.2mm |
| Standards Met | EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH, RoHS Compliant, UL 60950-1 |
