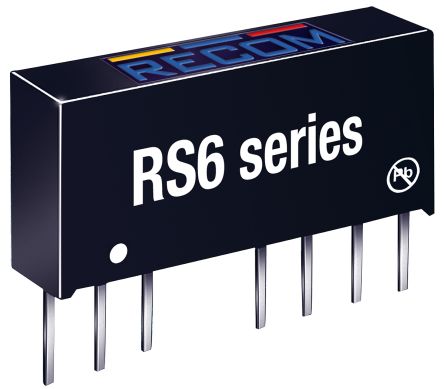

Recom RS6 6W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out ±12V dc [RS6-1212D]; 124-4216
by Recom
0₫
Mã kho: 1244216
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Output Voltage Adjustment Range | ±11.04 V dc, ±13.2 V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.6kV dc |
| Power Rating | 6W |
| Output Current | ±250mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Efficiency | 0.87 |
| Package | SIP |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +75°C |
| Depth | 11.1mm |
| Series | RS6 |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IECEEE CB Scheme |
| Width | 9.2mm |
| Length | 21.8mm |
