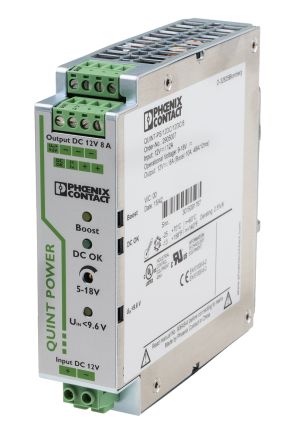

Phoenix Contact QUINT-PS/12DC/12DC/8 11.8W Isolated DC-DC Converter DIN Rail Mount, Voltage in 9 → 18 V dc, [2905007]; 168-2490
0₫
Mã kho: 1682490
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5 → 18V dc |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1.5kV dc |
| Power Rating | 11.8W |
| Output Current | 8A |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| Standards Met | CULus Recognized, UL 508, UL 60950-1, UL listed |
| Width | 125mm |
| Depth | 130mm |
| Length | 32mm |
| Series | QUINT-PS/12DC/12DC/8 |
