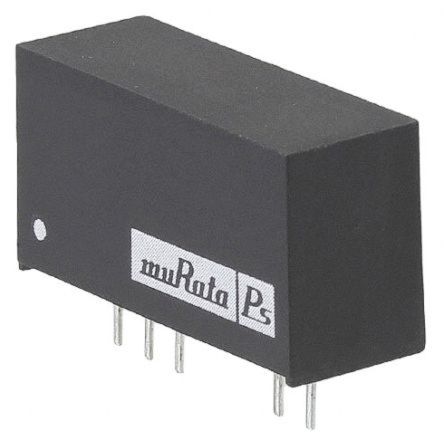

Murata Power Solutions NCS1 1W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 18 V dc, Voltage out 12V [NCS1S1212SC]; 167-6023
0₫
Mã kho: 1676023
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 4.5 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 1kV dc |
| Power Rating | 1W |
| Output Current | 83mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.79 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.005 |
| Maximum Temperature | +105°C |
| Series | NCS1 |
| Length | 21.87mm |
| Depth | 11.3mm |
