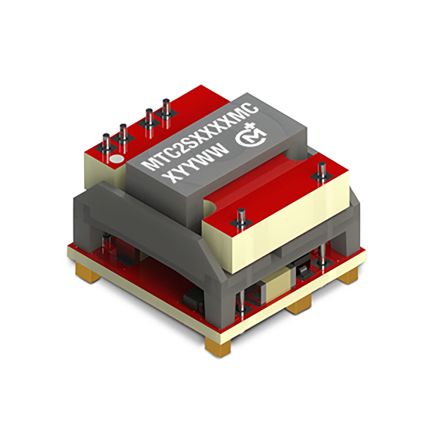

Murata Power Solutions MTC2 2W Isolated DC-DC Converter Surface Mount, Voltage in 9 → 18 V dc, Voltage out 5V dc [MTC2S1205MC-R7]; 123-4622
0₫
Mã kho: 1234622
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Output Voltage Adjustment Range | ±10% |
| Input Voltage Range | 9 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 3 kV ac, 5.2 kV dc |
| Power Rating | 2W |
| Output Current | 400mA |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 0.8 |
| Load Regulation | ±0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +105°C |
| Length | 14.99mm |
| Width | 14.22mm |
| Depth | 11.25mm |
| Series | MTC2 |
